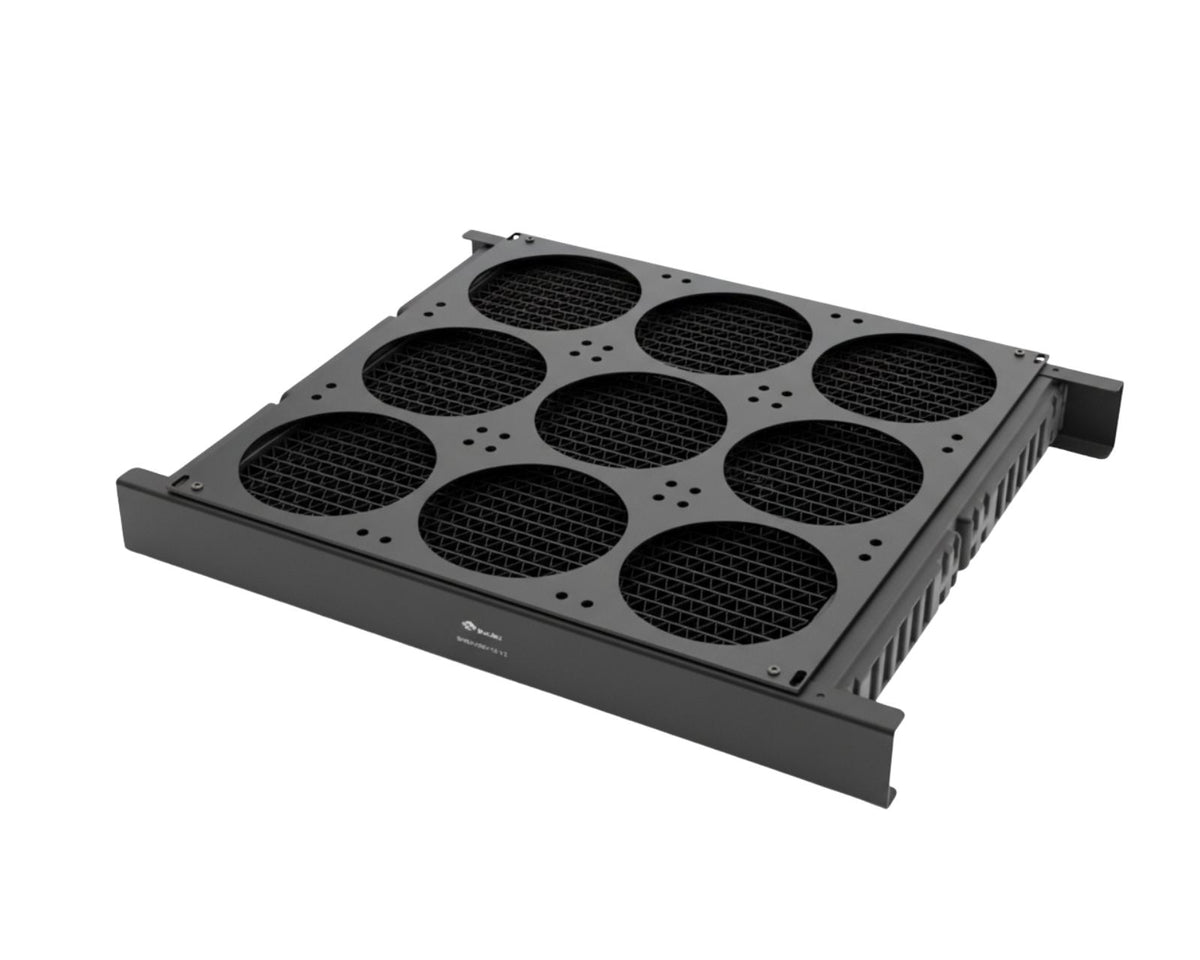

Bykski 1080mm x 46mm RD Series Radiator, 120mm x 9, Nine Fan (B-RD1080TK-V2)
Bykski B-RD1080-TK-V2 radiator is designed with a double row of copper channels. The thickness of the radiator is 46mm which gives this radiator more cooling surface area. The water channels and wave fins are made of red copper with thermal conductivity of up to 401 w/(M.K.). There are 30 water channels aligned in an upper and lower double channel pattern, this gives more heat dissipation area and better performance.
Features
- 30 Channel Design
- Industry Standard G1/4 Thread
- High Quality Copper Design
Specifications
- Material: Brass / Red Copper / Copper / Iron side plates (not in contact with coolant)
- Dimensions: 396mm x 360mm x 46mm
- Ports: 4
- Port Thread: G 1/4
- Mount Thread: M3 / M5
- Channels: 30
- Pressure: 1.5bar
- Fin Density: 14FPI
- Weight: 2.4 kg
Compatibility
- Fans: 120mm x 9
Included Parts
- 1x Radiator
- 4x M3 x 6mm Screws
- 36x M5 x10mm Screws
Warnings
Radiator is formed by a high temperature integrated soldering process. Due to this, there will be a slight color change in the copper, this is a result of the process, not rust.
Please pay attention to the length of the screw. If the screw is too long, it will break through the radiator and cause water leakage, voiding the warranty . The radiator comes with screws suitable for 120mm fans of 25mm thickness. If you want to install a thinner or thicker fan, please use the right length of the screw. (Fan thickness+5mm max, not included)
Not responsible for any hardware damage. Use at your own risk.
