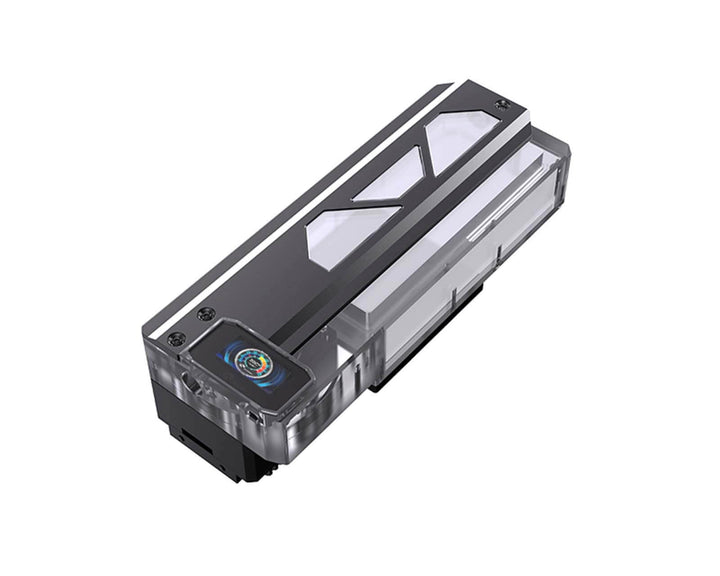

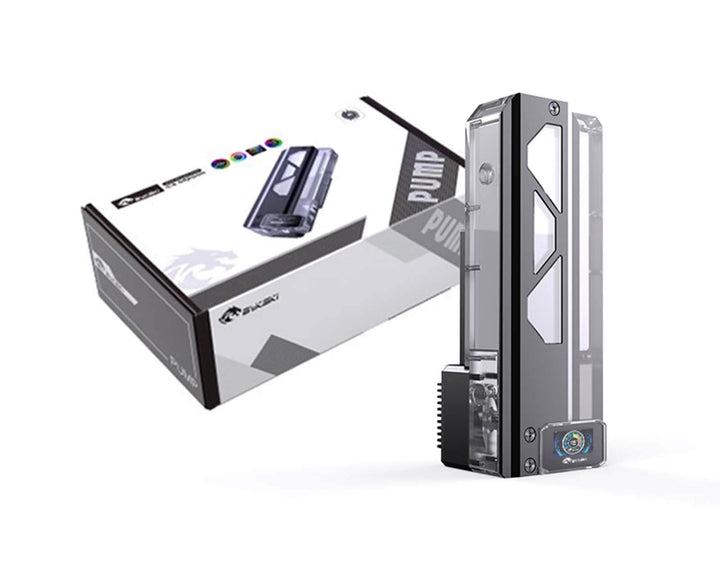

Bykski DDC Pump / 220mm Reservoir Station w/ Temp Digital Display and 5v Addressable RGB (RBW) (CP-DDC-X-TK220-V2)
This latest iteration to the Bykski DDC Pump Station Kit comes with power, versatility and real time temperature display. The clear PMMA body showcases whatever fluid you run with. Aluminum cover plates and pump armor give the reservoir a distinct look and design. On the bottom right of the station is a temperature gauge giving you real time read outs of your current temperature. The included powerful DDC pump powers the station delivering excellent flow across your loop. Multiple mounting options are included with an 120mm mounting bracket (B-BKT-105) and DIY elbow brackets.
Features
- Low Vibration / Quiet Operation

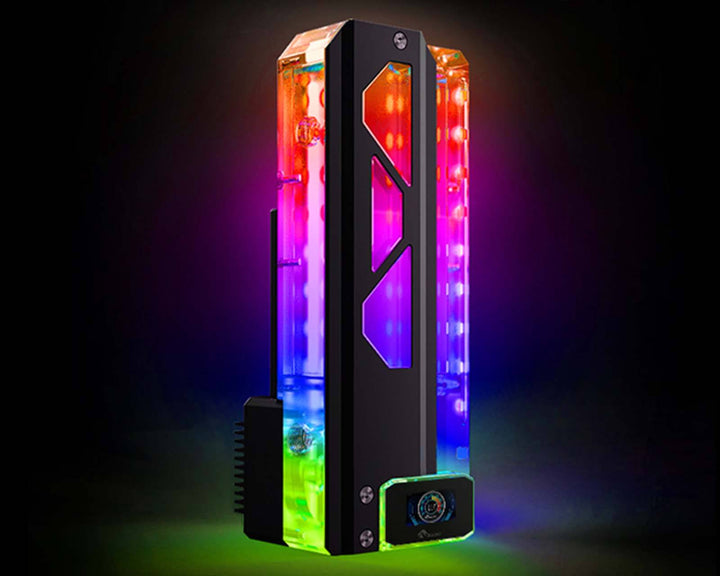

- Ultra Bright 5v A-RGB Integrated LEDs

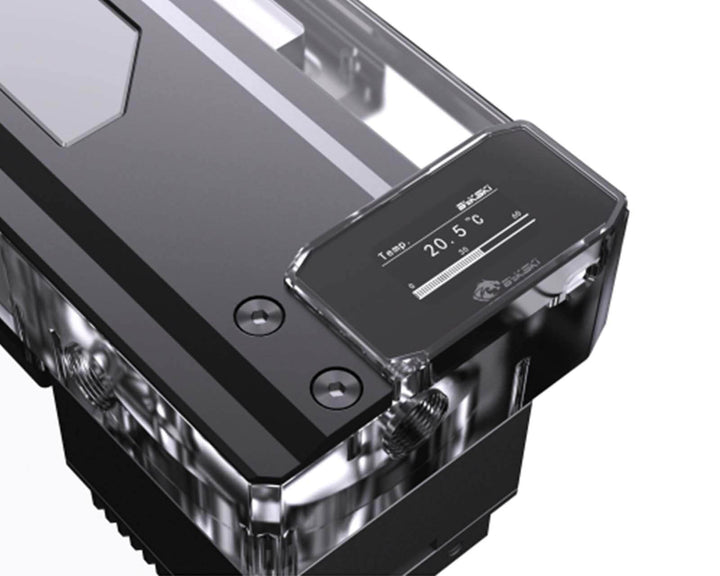

- Digital Temperature Read Out
Specifications
- Material: Mitsubishi Acrylic / Black Anodized Aluminum (not in contact with coolant)

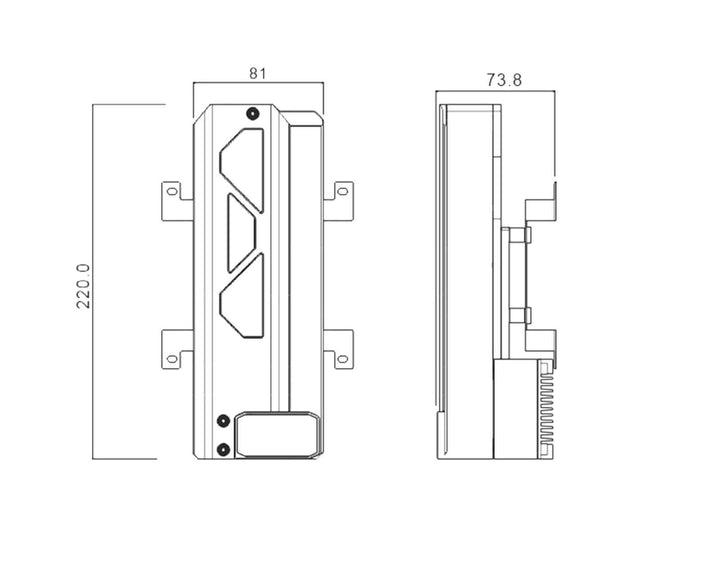

- Dimensions: 220mm(H) x 81mm(W) 73.8mm(D)

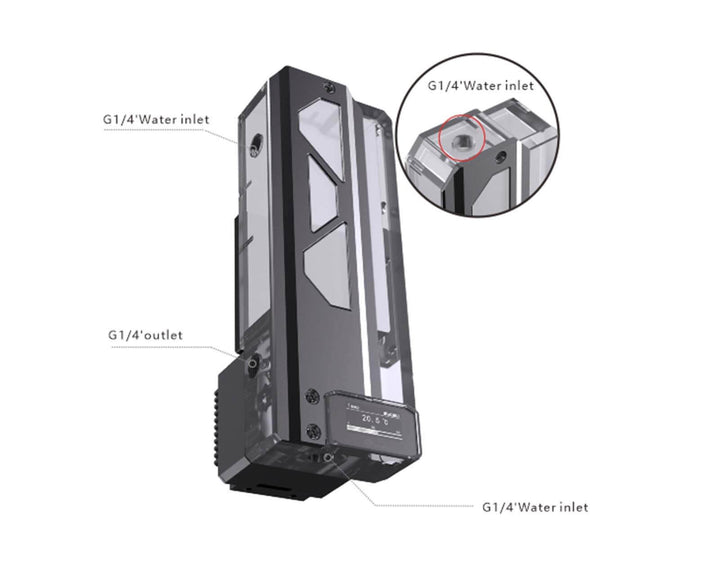

- Thread: G 1/4in.
- Inlets: 3
- Outlets: 1
Pump Specifications: CP-PMD3COV-X with heatsink
- Max RPM: 5000
- Temperature: 45°C @ 4000RPM
- Power: 12V (TDP15W)
- Power Connector: 4-Pin PWM
- Voltage Consumption: DC12v, TDP 15W
- Voltage Range: 10-15v
- Flow Rate: 600L/H
- Output Head: 6 Meters
- Connector: 4-Pin Molex and 4-pin fan (Tach+PWM only)
- MTBF 50,000 Hours
Compatibility

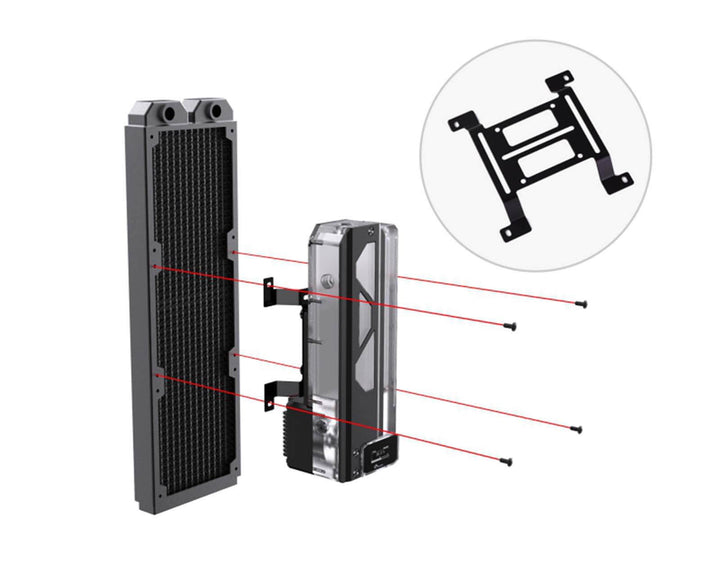

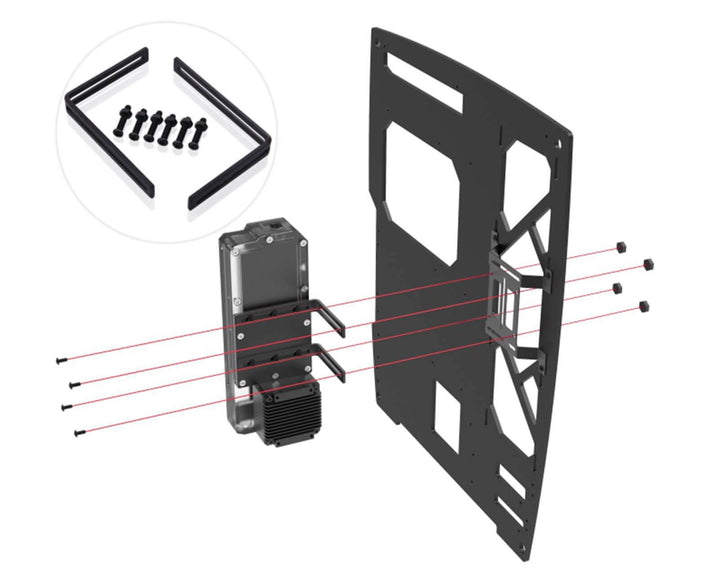

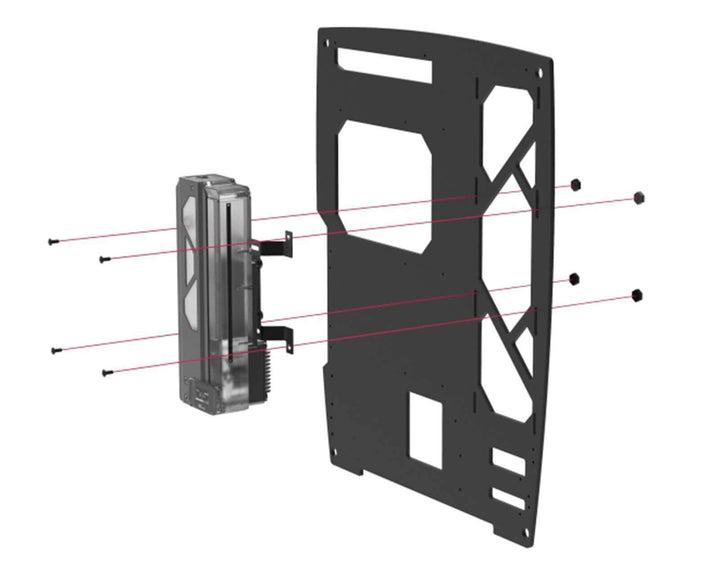

- Mount Type: 120mm Mount Bracket or DIY
- Loop: Non-Aluminum
Included Parts
- 1x 220mm Reservoir Station
- DDC Pump w/ Heatsink (installed)
Warnings
Not responsible for any hardware damage. Use at your own risk.
Customer Reviews

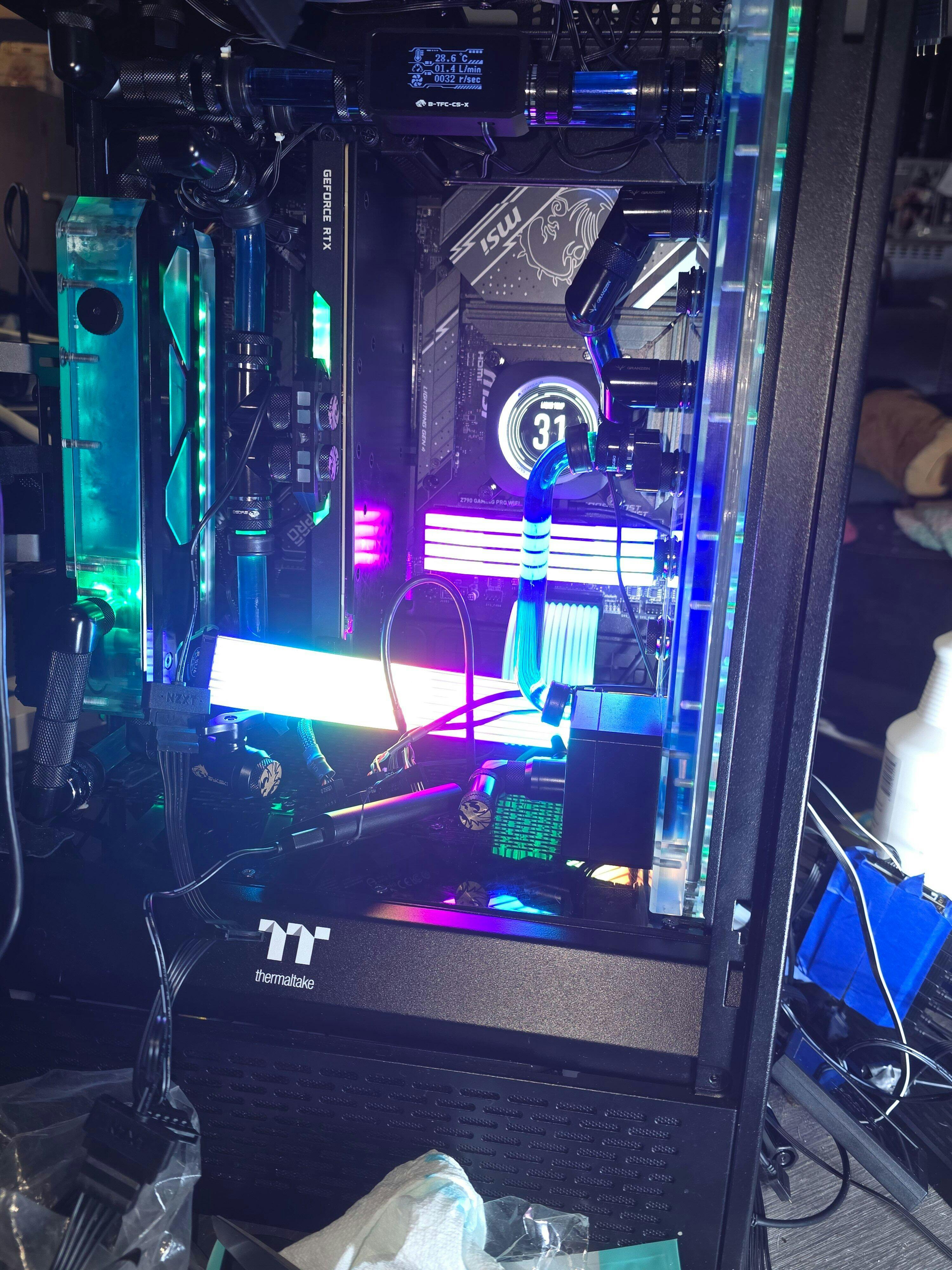

In the looks department this things rocks! gorgeous aRGB, and the monitor is nice too. I severely struggled getting the res filled with my setup and had to resort to using the side port as my return due to the amount of "foam/froth" using the top port was causing due to not being able to fill it entirely because of how low the side port is. Thats really myonly gripe is not having two top inlets, or the fact that the one on the side is about an inch lower that top of level. Besides that its quiet and def eye catching and has been keeping my 3080/5800x3D sub 55deg. in everything i throw at it.
I've been using this reservoir for approaching 3 years now, and it's been fantastic. Very unique look and the aRGB integrates easily with your system. People always recommend D5 pumps over DDC because DDC's are louder and aren't cooled by the water flowing through, but this pump has been very quiet and it's been running flawlessly with Bykski's big "Armor" heatsink. I definitely recommend mounting it by a radiator, though, so heatsink does get some airflow. Haven't had any issues pushing plenty of flow through a chonky 420 and a 280 rad with a cpu & gpu block. And it's PWM so I can control it through my Aquacomputer controller, which is another plus since a lot of D5's aren't PWM.
Only negative I'd say is that the bottom port is listed as an inlet, but that's a little finnicky. Trying to fill up the loop in that configuration ends up starving the pump and it makes unhappy noises, so I just switched to the upper side inlet instead. Really that might demerit half a star, but since you can't do half-stars on here I'll leave it at 5 stars, since it's been excellent otherwise.
Great reservoir! This was my first time doing a custom water cooling loop and I wanted a decently sized reservoir that would fit in my Fractal R6 case.
I love the way it looks and the RGB is an added bonus. The coolant temperature display is also very help and I'm glad I got that.
