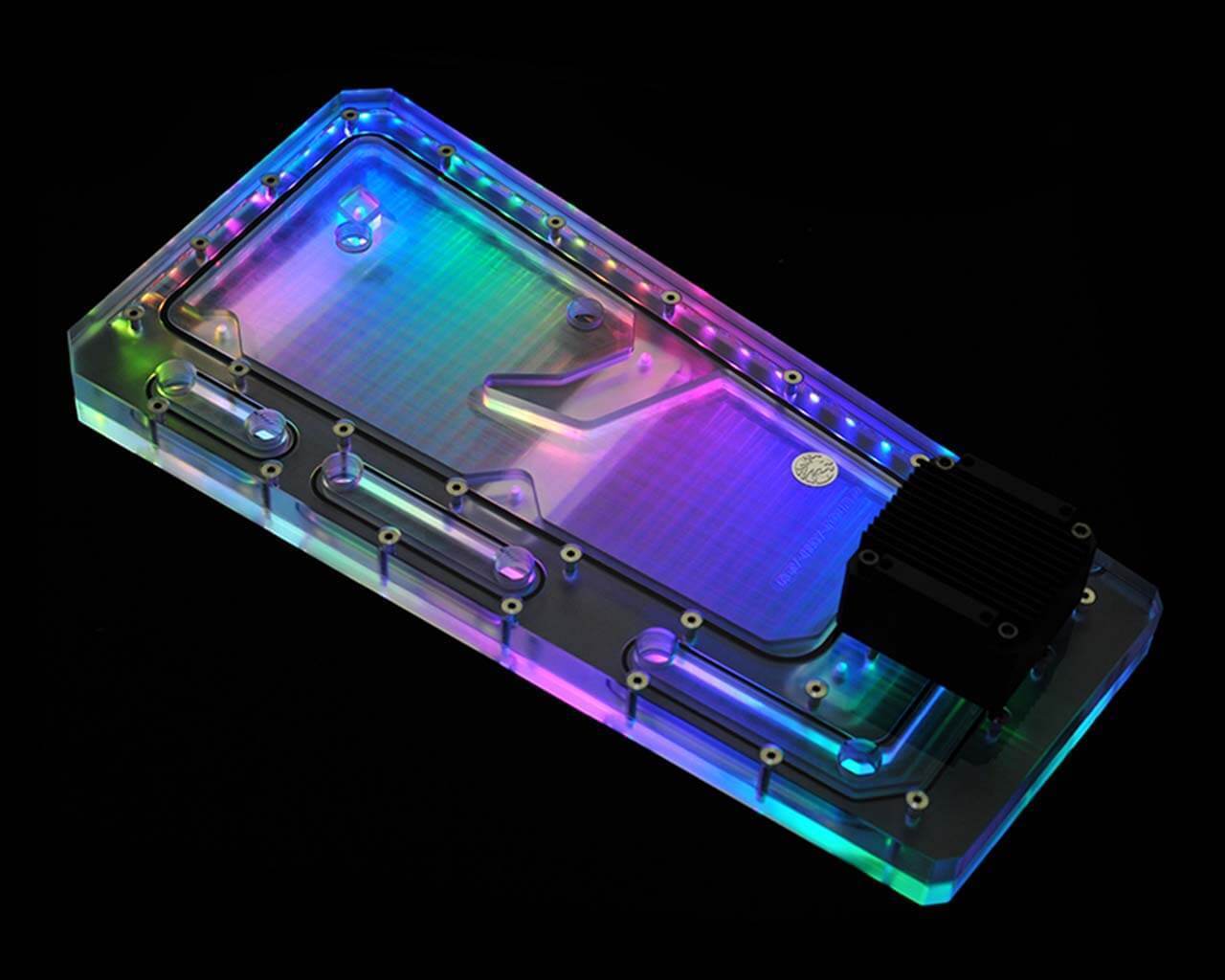

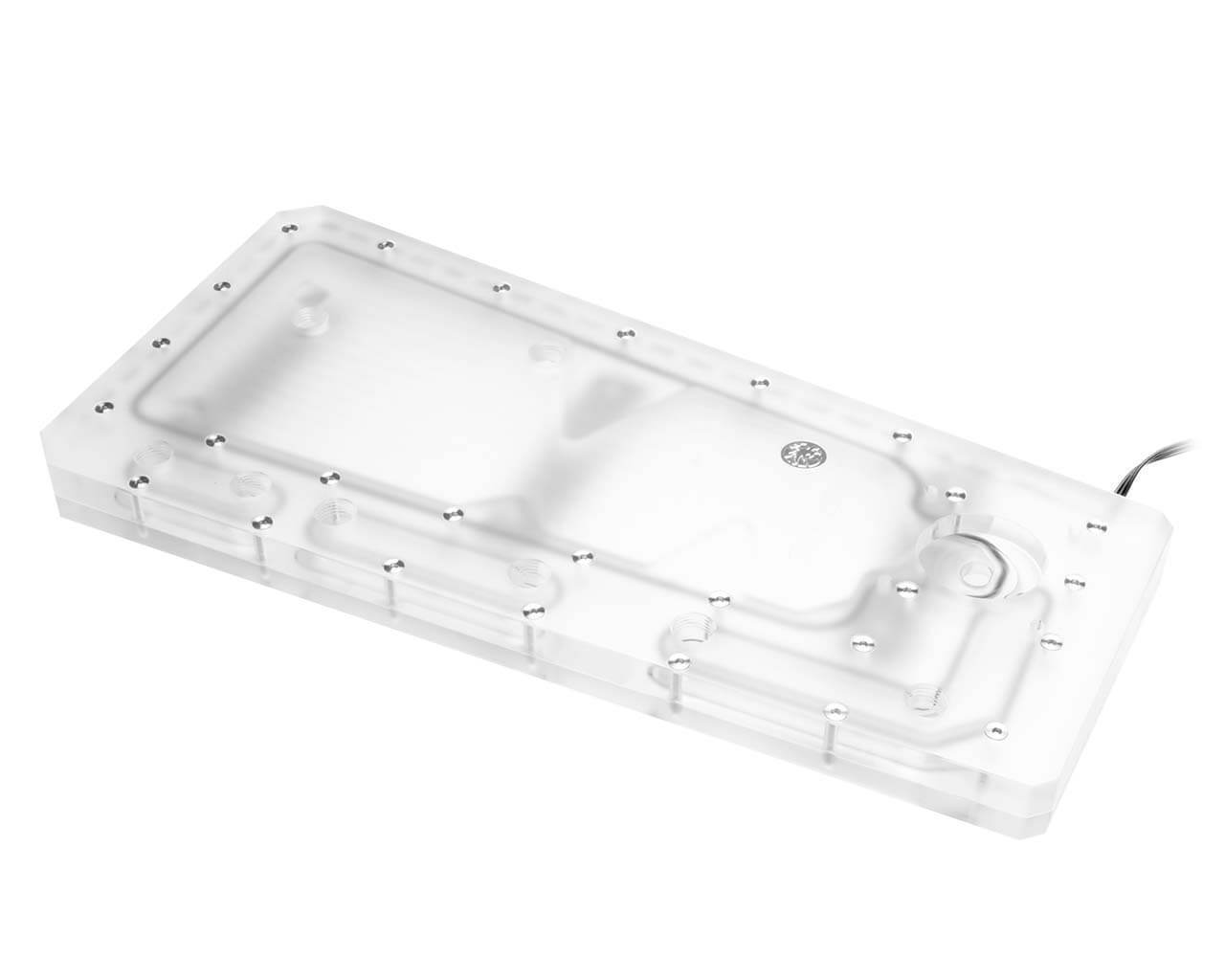

Bykski Distro Plate For InWin TOU2.0 - PMMA w/ 5v Addressable RGB (RBW) (RGV-INW-TOU2.0)

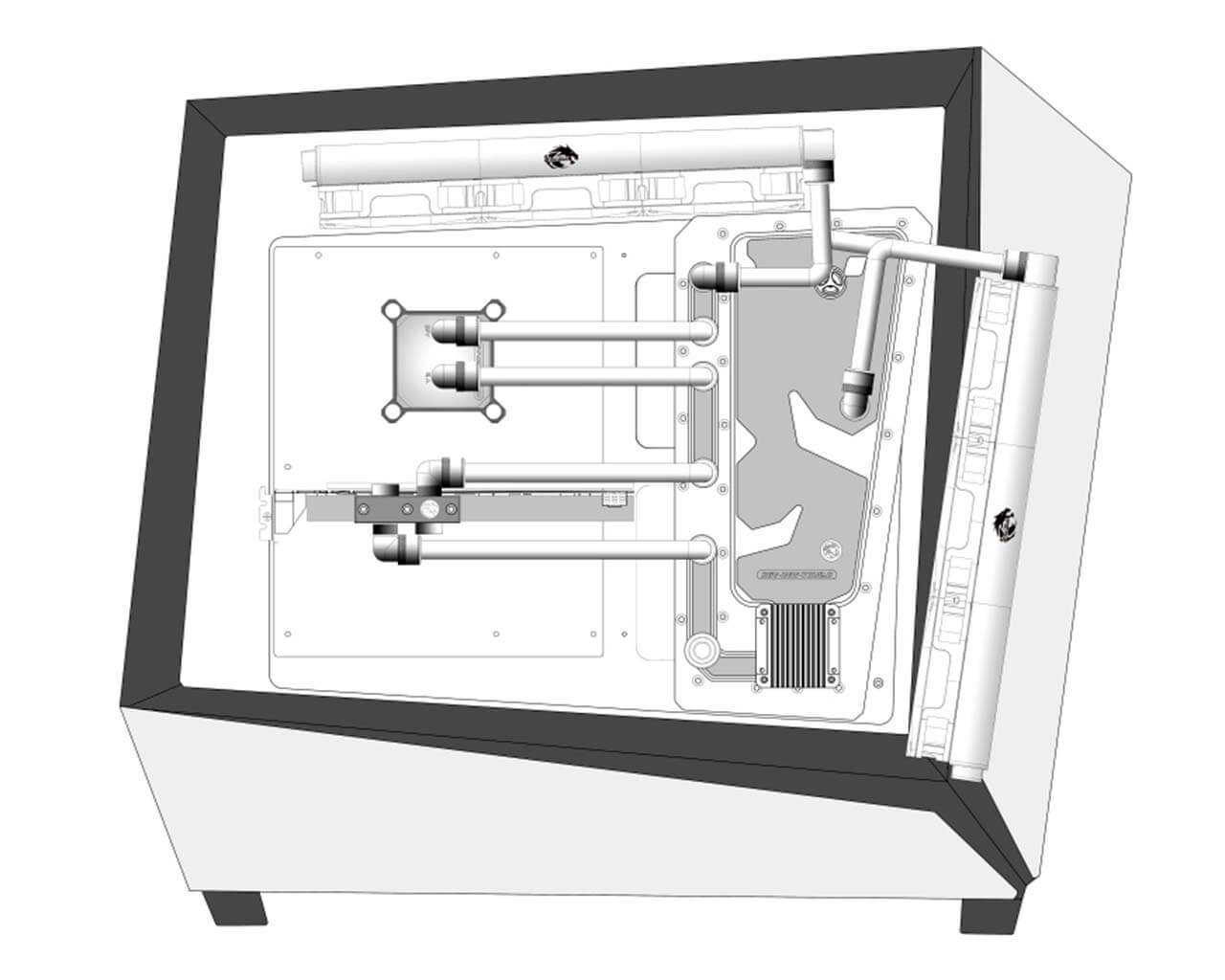

Bykski Distro or distribution plates are a unique way to outfit your cooling loop. These are designed case specific to fit perfectly to create amazing cooling loops and a stunning visual look. Ports are lined up for perfect lines to each cooling device.

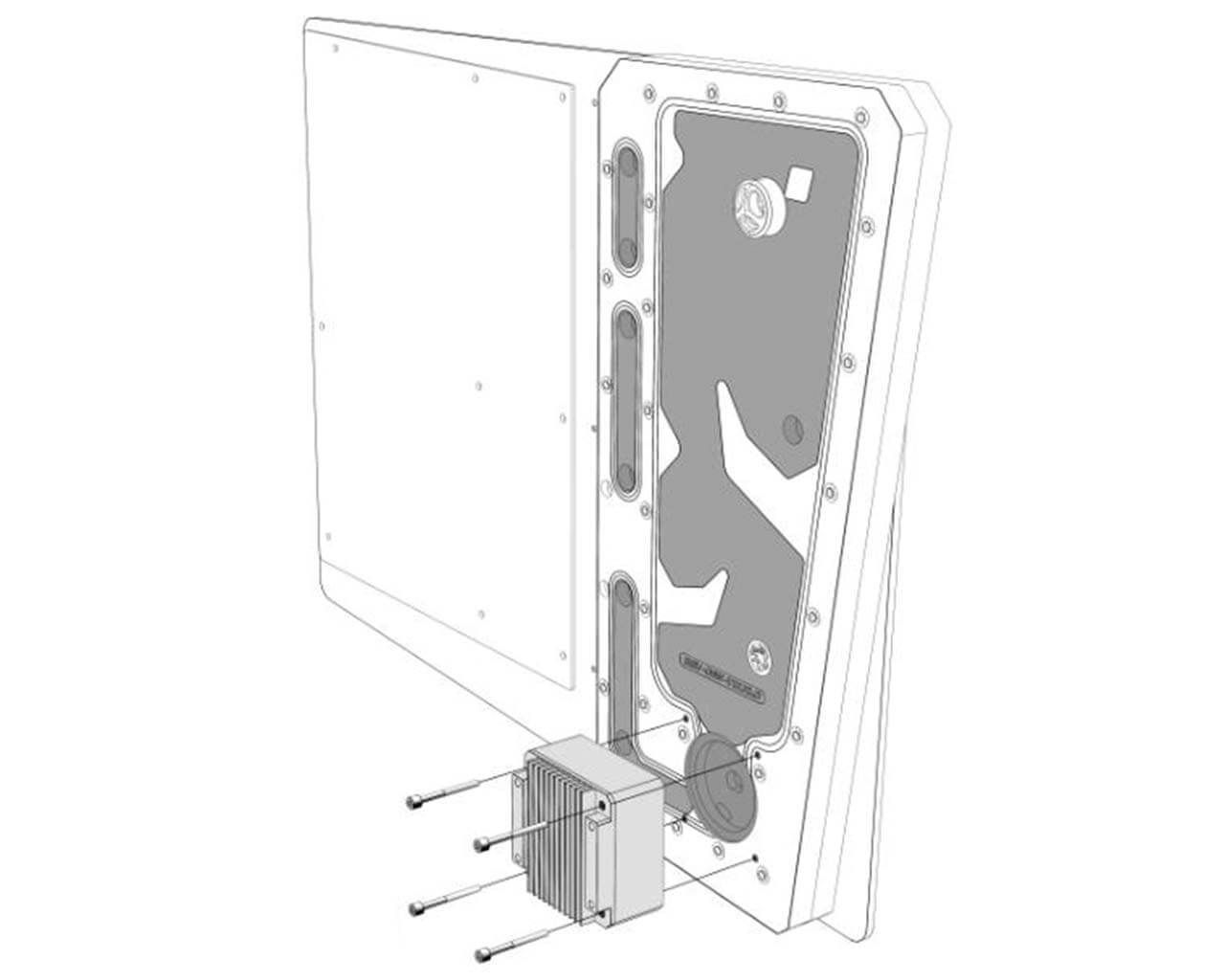

The Distro plate is engineered to be used with an inline pump (included) allowing you to power your entire loop right from your distribution center piece.
Note: Some pictures may show a colored pump armor, product comes with black armor.

Specifications

Material: PMMA

Thread: G 1/4

Specifications - DDC

Power:12V / TDP18W

Heatsink Material:Aluminum

Power:Standard 4 pin power connector and a PWM 4-Pin header

Voltage Range:10V - 15V DC

MTBF (Mean Time Between Failure):50,000 hours equivalent to 5 years lifetime

Maximum discharge:~ 132 GPH (600 LPH)

Max RPM:5000

Dimensions:62 x 62 x 58mm

Performance will vary based on cooling loop dynamic

Compatibility

Loop:Aluminum or Non-Aluminum

Radiator:Designed for 30mm thick or less

Case Type:InWin TOU2.0(specific)

Included

1x Distro plate

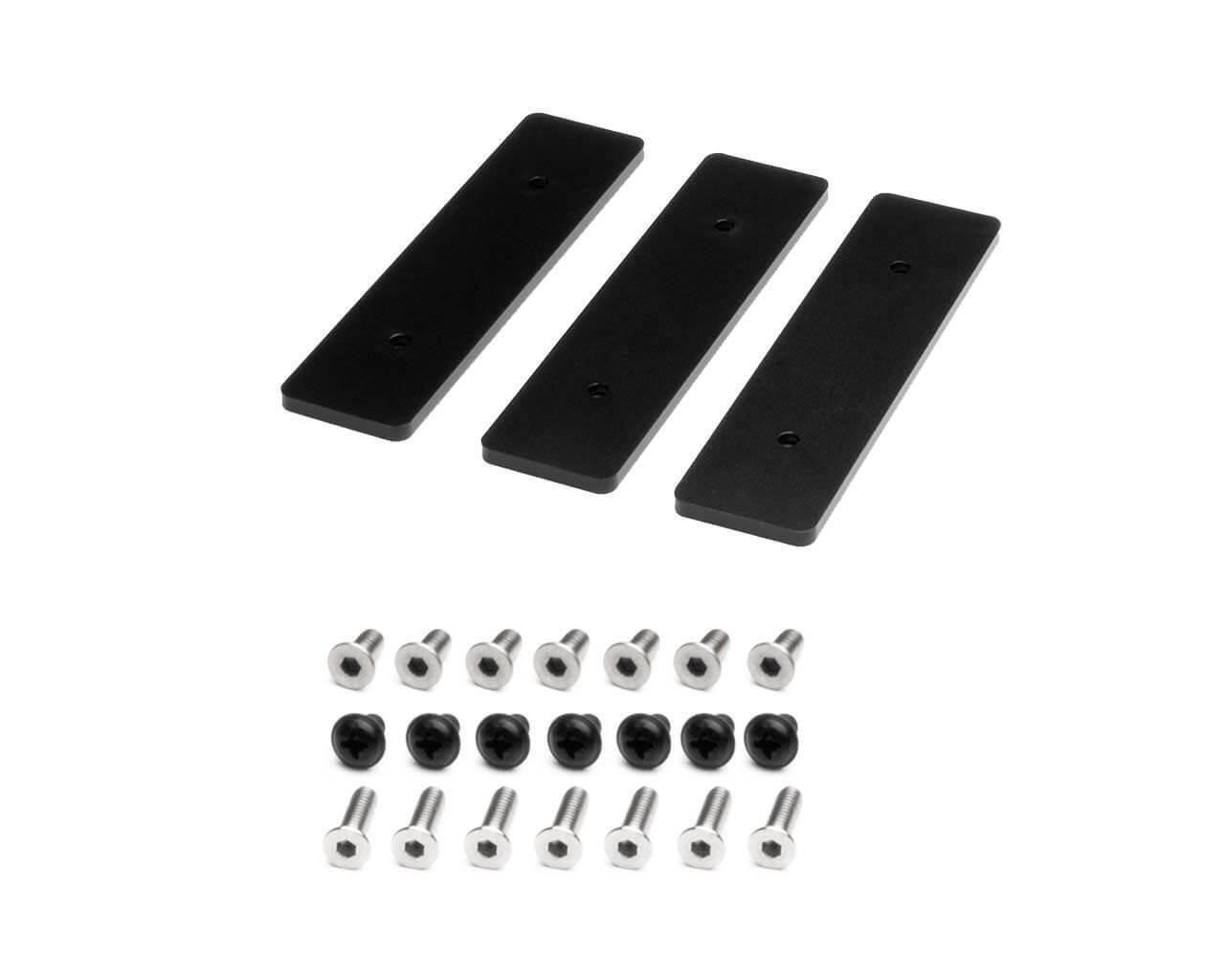

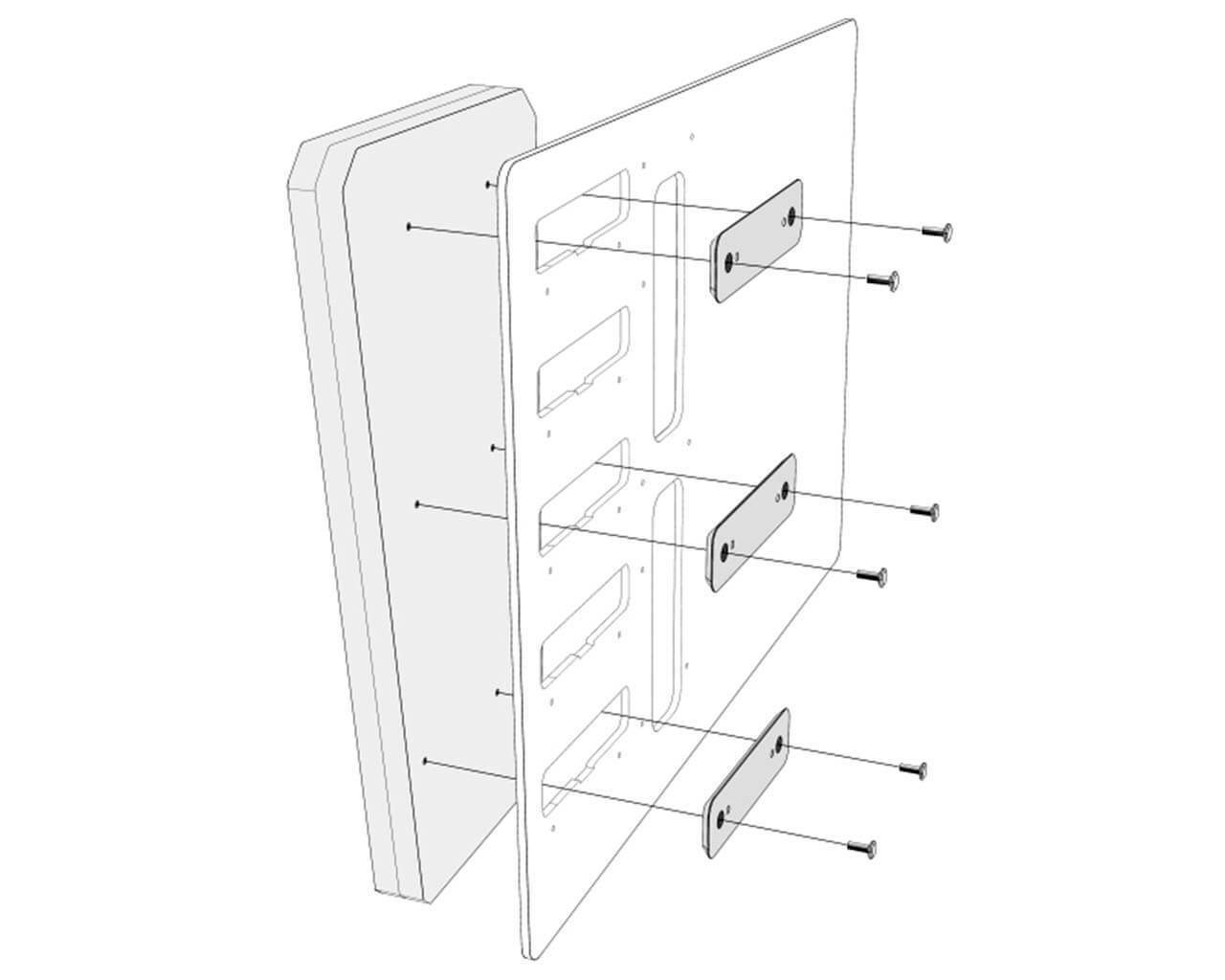

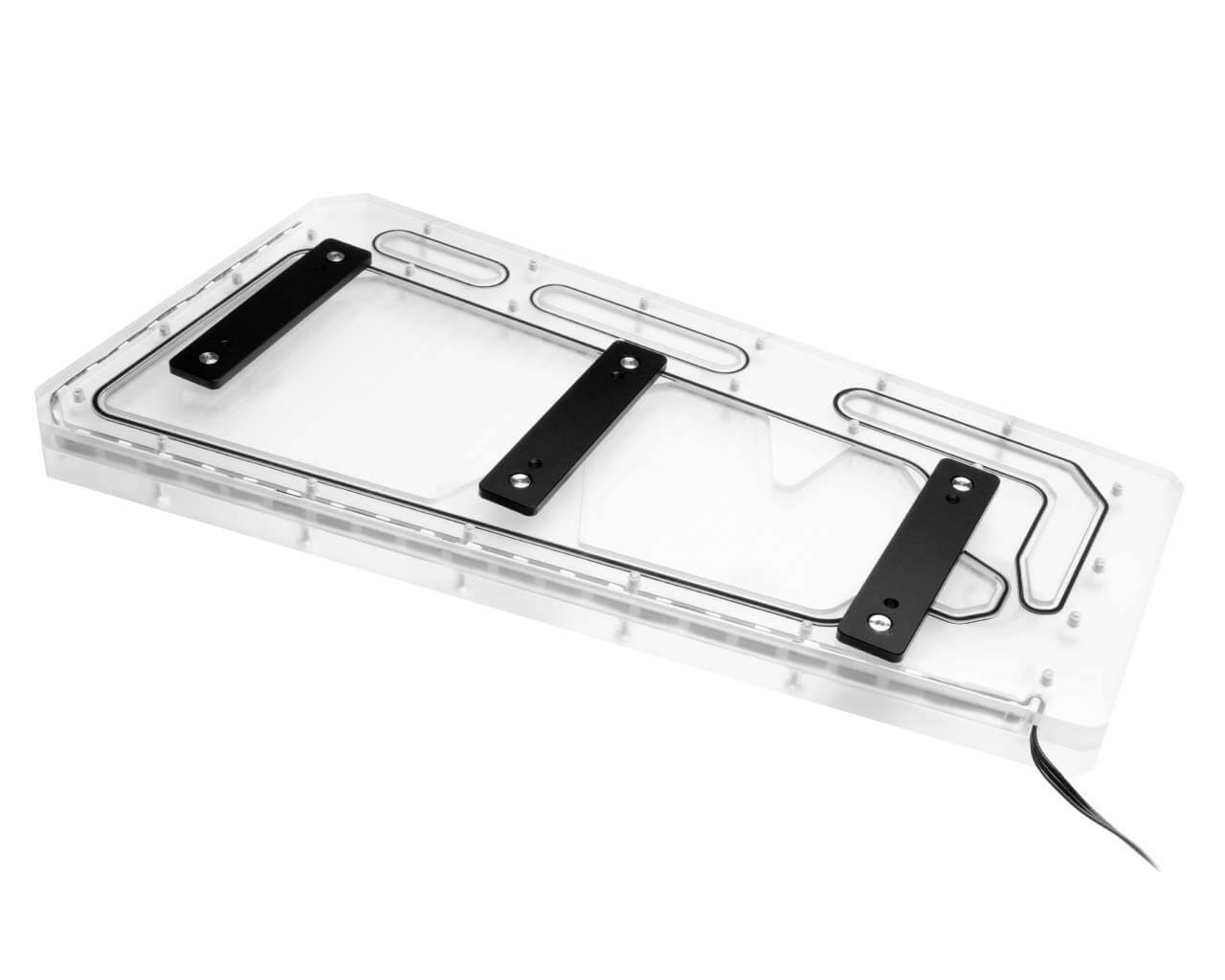

Mounting Hardware

1x DDC Pump

Warnings
This block is designed specifically for this case. Using other motherboards, blocks, and layouts is always possible but may not appear as pictured depending on component port locations. Not responsible for any hardware damage. Use at your own risk.
